WATER DRYING OVEN

WATER DRYING OVEN

Water Drying Oven: water dying oven used for drying of one offer peement process. After th some moure & on the object which has to be dry out becouse before coofing component should be clean and free from mom Followings are the types of oven

A. INLINE TYPE WATER DRYING OVEN

This type of oven is in fine with the dip pretreatment process. The oven is also known a tark type oven. This oven has sliding door which are preumaticallyhydraulically operated the heater box for this oven as at the side of oven the transportshots used for loading and unloading the basket in the oven from top side it has pneumatic/hydraulic opening doors.

B. BATCH TYPE WATER DRYING OVEN:

In this oven articles are loaded on the trolley and then trolley is pushed inside the oven after batch schedule time trolley is taken outside the oven in this oven trolley arrangement and door are provided in this oven manual push put track are do provided for loading and unloading of components

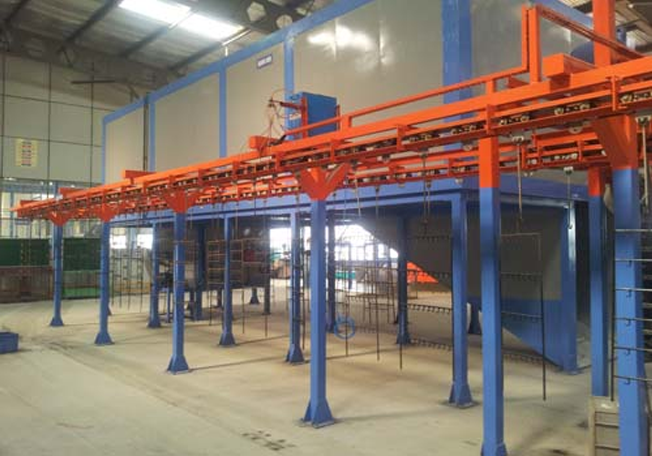

C.CONVEYORISED CONVENTIONAL WATER DRYING OVEN:

In this oven pretreatment articles are hung on the conveyor and then conveyor camies the article through oven. Articles travel for particular time to get water and and conveyor brings the article outside in this oven article entry and excut out is provided perpendicular to the ground

D.CONVEYORISED CAMEL BACK WATER DRYING OVEN:

in this oven all working is same as Conveyorsed conventional oven only the difference is the articles entry and exit cut out is provided parales to the ground for reduction in heat loss. This oven is working on two principles-

A Natural Airflow

B Natural draft
